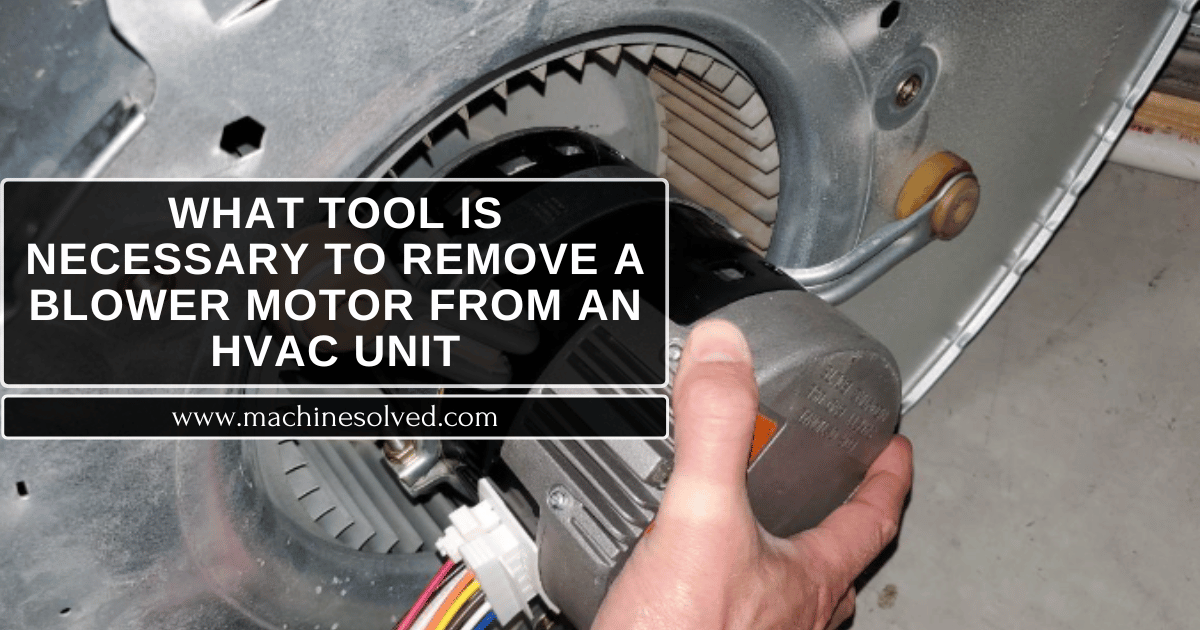

To remove a blower motor from an HVAC unit, you need a specific tool. The essential tool is a nut driver.
Working on HVAC units can be tricky without the right tools. The blower motor, which helps circulate air, is a key component. To replace or repair it, you must remove it carefully. The nut driver is crucial for this task.
It helps you remove the screws and bolts securing the motor. With this tool in hand, you can tackle the job safely and efficiently. Understanding how to use it will make the process smoother. So, let’s dive into the details and ensure you have everything you need to get the job done right.
Tools Needed
Removing a blower motor from an HVAC unit requires the right tools. Having the proper tools ensures that the job is done efficiently and safely. Let’s look at the tools needed for this task.
Basic Tools
First, gather your basic tools. These include a screwdriver set, pliers, and a wrench set. You may also need a socket set. These tools help you remove screws, nuts, and bolts that secure the blower motor.
Additionally, a flashlight is useful. It helps you see inside the unit. A cordless drill can speed up the process. It can remove screws quickly.
Specialized Tools
Some specialized tools may be necessary. These tools are specific to HVAC units. One such tool is a multimeter. It helps you check electrical connections. It ensures that the power is off before you begin.
Another important tool is a puller. This tool helps you remove the blower wheel from the motor shaft. It makes the process easier and prevents damage. A service manual for your HVAC unit can also be very helpful. It provides specific instructions for your model.
Having these tools ready will make removing a blower motor much easier. Make sure you have them on hand before starting the job.
Safety Equipment
When removing a blower motor from an HVAC unit, safety equipment is vital. Proper gear protects you from potential injuries and hazards. The right safety equipment ensures a smooth and safe removal process.
Gloves
Wearing gloves is essential. They protect your hands from sharp edges and debris. Choose durable, cut-resistant gloves for this task. They offer a better grip and prevent slips. This adds an extra layer of safety.
Safety Glasses
Safety glasses shield your eyes. During the removal process, small particles can fly around. These particles can cause eye injuries. Safety glasses prevent this. Ensure they fit well and are comfortable. This helps you focus on the task.
Preparation Steps
Removing a blower motor from an HVAC unit can be a complex task. Proper preparation is essential. It ensures safety and efficiency. Follow these steps to get ready. You will need a few basic tools and a clear plan.
Power Off
Always start by turning off the power. Locate the circuit breaker for the HVAC unit. Flip the switch to the off position. This step prevents electrical shocks. Verify the power is off using a multimeter. Safety comes first.
Clear Workspace
Next, clear the workspace around the HVAC unit. Remove any obstacles. This includes furniture, boxes, or other items. A clean area reduces accidents and makes the job easier. Ensure you have enough room to move around.
Gather all necessary tools. You will need a screwdriver, a wrench, and a flashlight. Keep them within reach. This preparation saves time and effort. You can focus on the task without interruptions.
Removing Screws
Removing screws is a crucial step in detaching a blower motor from an HVAC unit. This task requires the right tools and techniques to ensure the screws are removed without damage. Understanding the types of screwdrivers and the proper methods can make this process much easier.
Screwdriver Types
Different screws need different screwdrivers. The most common types are flathead and Phillips head screwdrivers. Flathead screwdrivers have a flat, straight blade. Phillips head screwdrivers have a cross-shaped tip. Both types come in various sizes. Select the right size to fit the screw head snugly. Using the wrong size can strip the screws, making them hard to remove.
Proper Techniques
First, make sure the screwdriver fits the screw head perfectly. Press the screwdriver firmly into the screw head. Turn it slowly and steadily. If the screw is tight, apply more pressure. Avoid using too much force to prevent stripping the screw. If the screw doesn’t budge, use a penetrating oil to loosen it. Spray a small amount on the screw and wait a few minutes. Try turning the screw again. This should make it easier to remove.
Disconnecting Wires
Disconnecting the wires from a blower motor in an HVAC unit is a crucial step. It ensures safety and helps you avoid damaging the components. Let’s break down how to do it effectively.
Labeling Wires
Before you start disconnecting any wires, it’s important to label them. Use masking tape and a marker. Write down where each wire connects on the tape.
This step might seem tedious, but it saves a lot of hassle later. Knowing exactly where each wire goes helps you reassemble the unit correctly. It also helps avoid short circuits and other electrical issues.
Using Wire Cutters
After labeling the wires, you’ll need wire cutters. Carefully snip the wires while ensuring you don’t damage the insulation. This keeps the wires in good condition for reconnection.
Make sure your wire cutters are sharp and designed for electrical work. Dull tools can make the job harder and potentially damage the wires. You don’t want to deal with frayed wires when putting everything back together.
Have you ever reconnected wires without labeling them first? If so, you know how frustrating it can be. Labeling and cutting wires properly makes the entire process smoother and safer.
Credit: hvacrschool.com
Extracting Blower Motor
Removing a blower motor from an HVAC unit may seem challenging, but with the right tools and a bit of patience, it can be done efficiently. The key is to know the steps and have the necessary tools ready. Let’s walk through the process, breaking it down into manageable parts.
Loosening Bolts
The first step involves loosening the bolts that secure the blower motor. A socket wrench is typically the tool of choice for this task. Ensure you have the correct socket size to avoid stripping the bolts.
Before you start, disconnect the power to the HVAC unit for safety. Then, identify the bolts holding the blower motor in place. Use your socket wrench to carefully loosen and remove these bolts. Keep them in a safe place, as you’ll need them for reassembly.
Motor Removal
With the bolts removed, it’s time to extract the blower motor. Gently pull the motor out of its housing. Be mindful of any wiring connected to it.
If wires are attached, make a note of their positions or take a photo for reference during reinstallation. Carefully disconnect the wires and set the motor aside. If the motor is stuck, a gentle wiggle can help free it without causing damage.
Have you ever found yourself mid-task without the right tool? It’s frustrating! Make sure to gather all necessary tools before starting. This preparation can save you time and headaches.
Ready to dive into your next HVAC project? Remember, patience and the right tools are your best allies.
Cleaning Area
A socket wrench is necessary to remove a blower motor from an HVAC unit. This tool helps in loosening the bolts.
When removing a blower motor from an HVAC unit, ensuring the workspace is clean and organized is crucial. A cluttered area can hinder your work and increase the risk of damage to both the HVAC unit and yourself. Cleaning the area around the blower motor sets the stage for a smooth and efficient removal process.
Dust Removal
Start by removing any dust and debris surrounding the blower motor. Dust can accumulate over time, especially in HVAC systems. Use a vacuum cleaner with a brush attachment to gently clean the area. This not only makes the removal process easier but also prevents dust from getting into the motor’s components. A clean environment allows you to see the parts clearly. This clarity can help you avoid misplacing screws or damaging delicate components. Remember, a little cleaning now can save you a lot of trouble later.
Inspect For Damage
While cleaning, take the opportunity to inspect the blower motor and surrounding components for any signs of damage. Look for cracks, frayed wires, or rust. Identifying these issues early can prevent further damage and ensure the unit operates efficiently once reassembled. If you notice any damaged parts, make a note of them. You might need to replace these parts during the blower motor removal process. This proactive approach can save you time and effort. Remember, a thorough inspection can also reveal potential safety hazards. Addressing these issues immediately ensures a safer working environment. Have you ever found unexpected damage while cleaning your HVAC unit? Share your experiences and tips in the comments below.
Credit: www.amazon.com
Installing New Motor
Installing a new motor in your HVAC unit is a crucial step to ensure the system runs smoothly. It might seem daunting, but with the right tools and a little patience, you can get it done efficiently. Let’s break down the process into manageable steps to help you through.
Aligning Motor
First, align the new motor with the mounting holes. This step is critical for the motor to function correctly. If the motor is not aligned properly, it might lead to vibrations and noise.
Take your time to ensure that the motor is perfectly aligned. I remember the first time I did this, I overlooked the alignment and had to redo the entire process. Avoid my mistake by double-checking the alignment before moving on.
Securing Bolts
Once the motor is aligned, it’s time to secure it with bolts. Make sure you have the right size wrench for this task. A wrench that’s too big or small can strip the bolts and cause issues.
Tighten the bolts evenly to avoid putting too much stress on one side of the motor. This step ensures the motor stays in place and operates smoothly. Have you ever tried tightening bolts unevenly? It can lead to a wobbly motor, which you definitely want to avoid!
After securing the bolts, give them one final check to ensure they are tight. This small step can save you a lot of hassle down the road. Remember, a secure motor is a happy motor!
Frequently Asked Questions
Can I Replace A Hvac Blower Motor Myself?
Yes, you can replace an HVAC blower motor yourself. Ensure you have the right tools and follow safety guidelines.
How Much Does It Cost To Replace A Blower Motor In An Hvac System?
Replacing a blower motor in an HVAC system typically costs between $300 and $900. The price varies based on the motor type and labor rates.
How Long Does It Take To Replace An Ac Blower Motor?
Replacing an AC blower motor typically takes 2-4 hours. The exact time depends on the unit’s complexity and accessibility.
Can Ac Run Without A Blower Motor?
No, an AC cannot run without a blower motor. The blower motor circulates air, essential for cooling.
Conclusion
A socket wrench is key for removing an HVAC blower motor. It makes the job easy. Ensure you have the right size and a good grip. Proper tools save time and effort. Always follow safety measures while working. Keep your workspace organized to avoid losing parts.
Regular HVAC maintenance prevents bigger issues. Now, you know the essential tool needed. Happy repairing!
